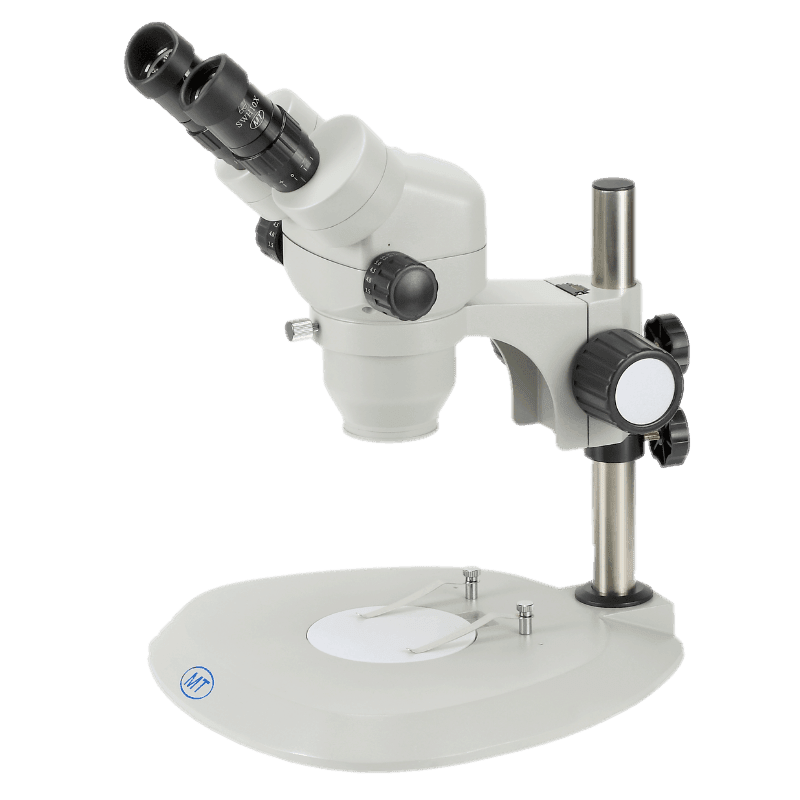

65X Zoom Stereo Microscope MZS1065 Series

Binocular or trinocular are both available;
A wide variety of optional accessories such as stands, auxiliary objectives, eyepieces, illuminators, CCD adaptors for trinocular version, and mechanical movement stages.
The default configuration is as below, for more details please check the “Product Details” or contact us.

Additional information

Greenough optical system, bright and high contrast images to be obtained at any magnification.
6.5X optical zoom magnification, with a 110mm long working distance, offers enough room for operation on the objects.

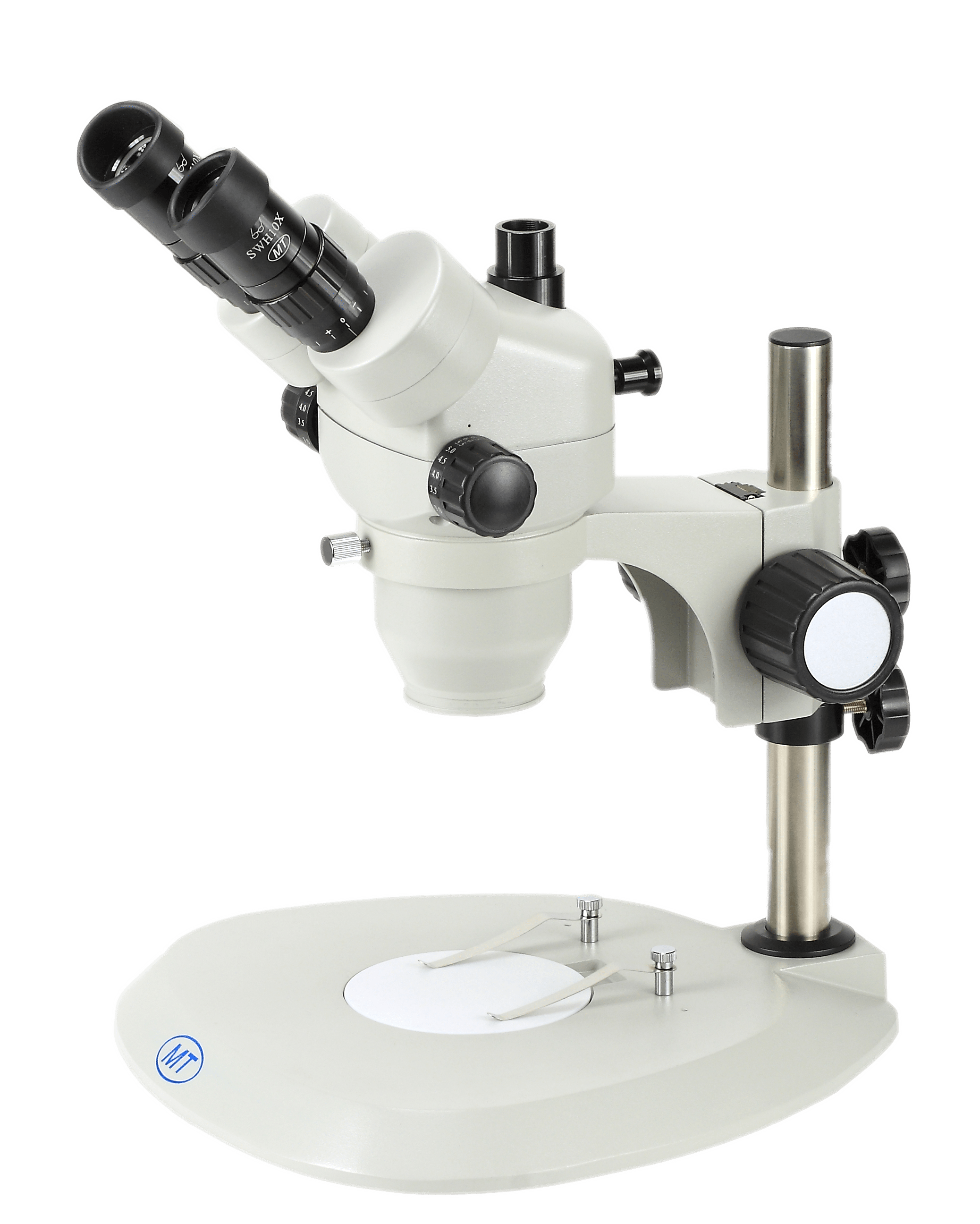

Includes MZS1065(binocular) and MZS1065T(trinocular). Trinocular optical head for monitoring and digital imaging. CCD adaptor is a must accessory to connect a digital camera. Lightpath split can be 50% and 50%.
Non-flash in zoom course while from high to low magnification
New optical design, recur the best resolution and true color image
Large depth of view, the width of visual fields, super long working distance, high cost-effective
Widely applied in fields of modern biology research, microelectronics, semiconductor, mobile phones, watches, and other science and technology industries. Mainly used in inspection on IC chips.

Dimension Drawing

Optical specifications

Optional accessories

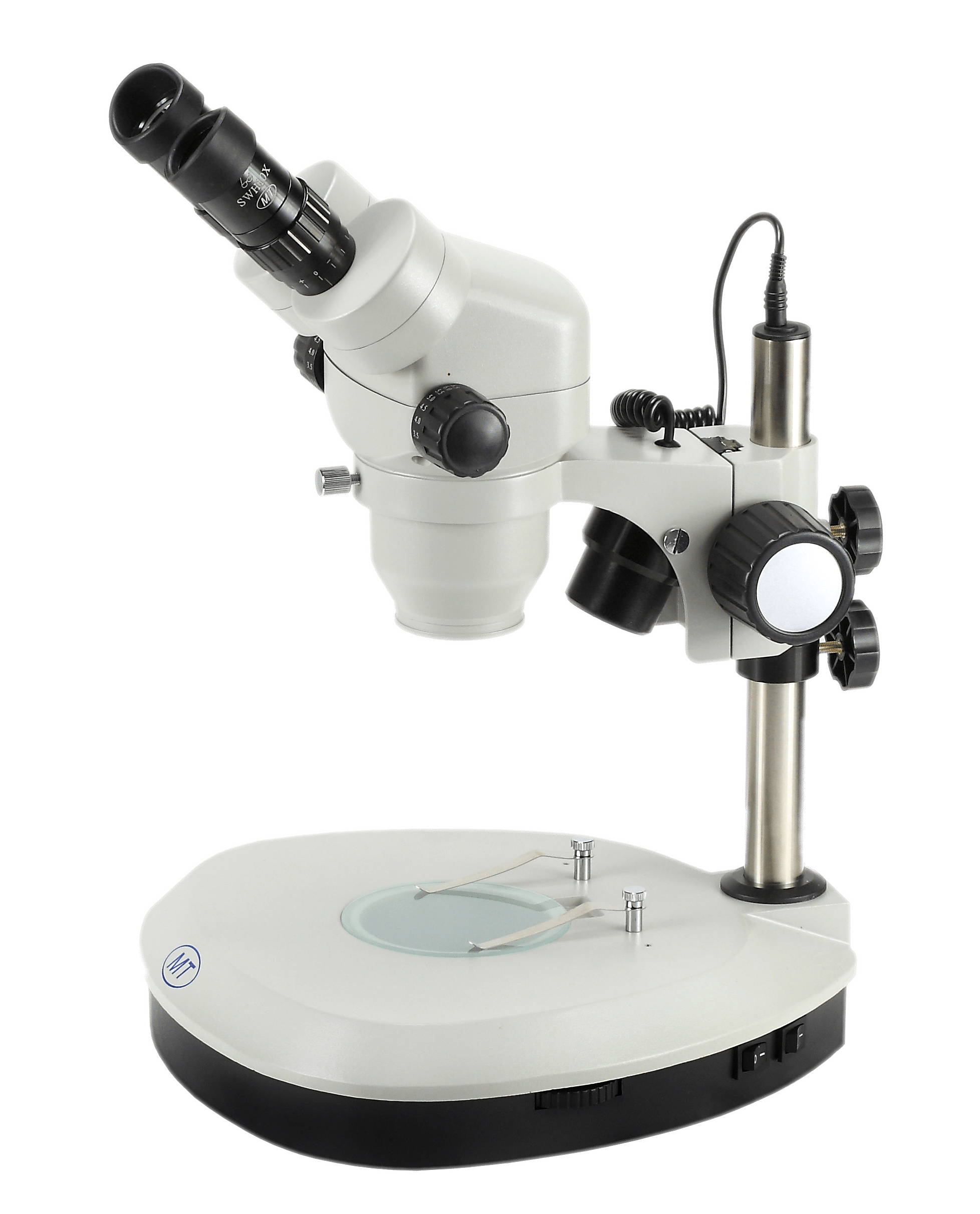

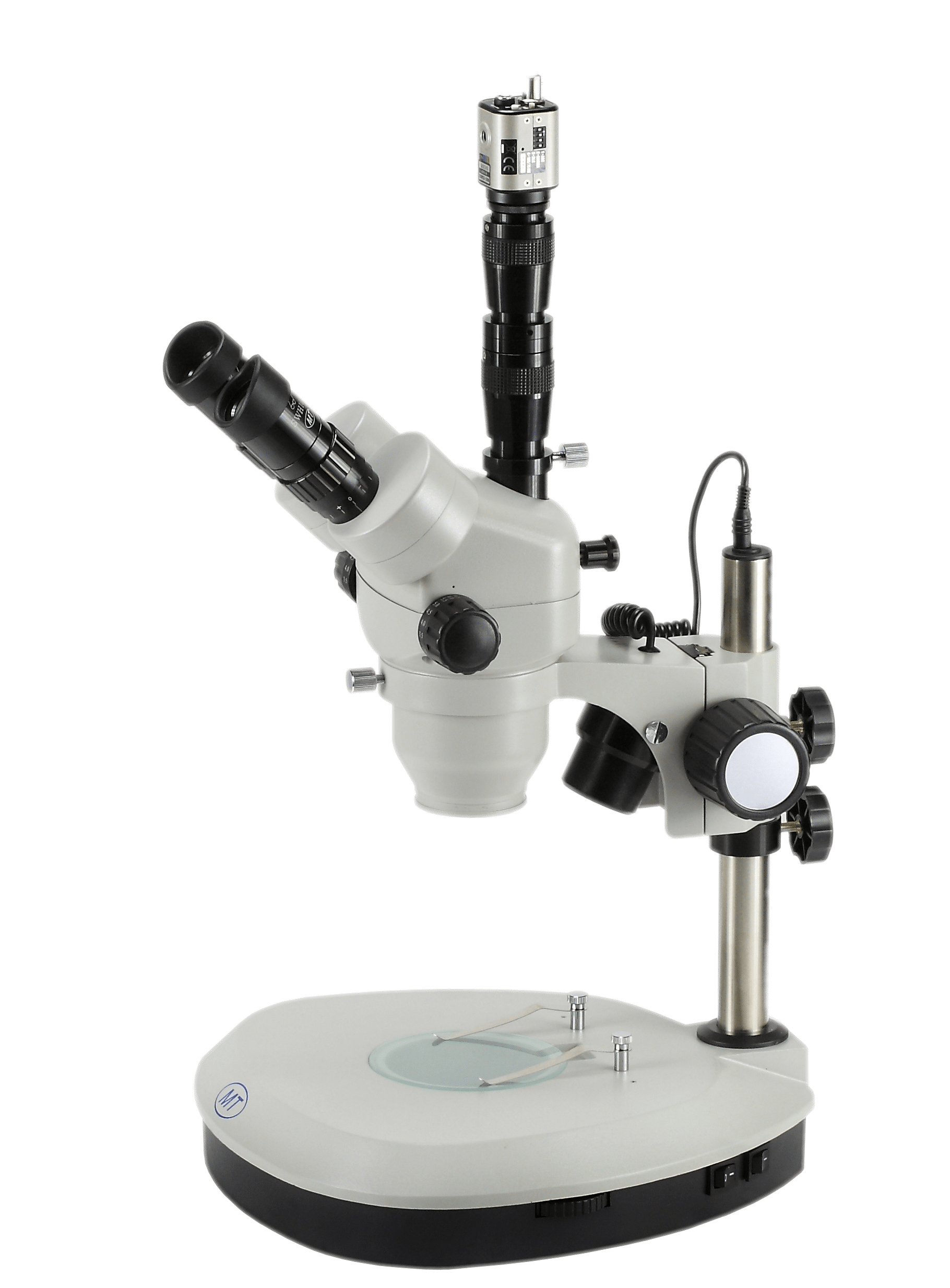

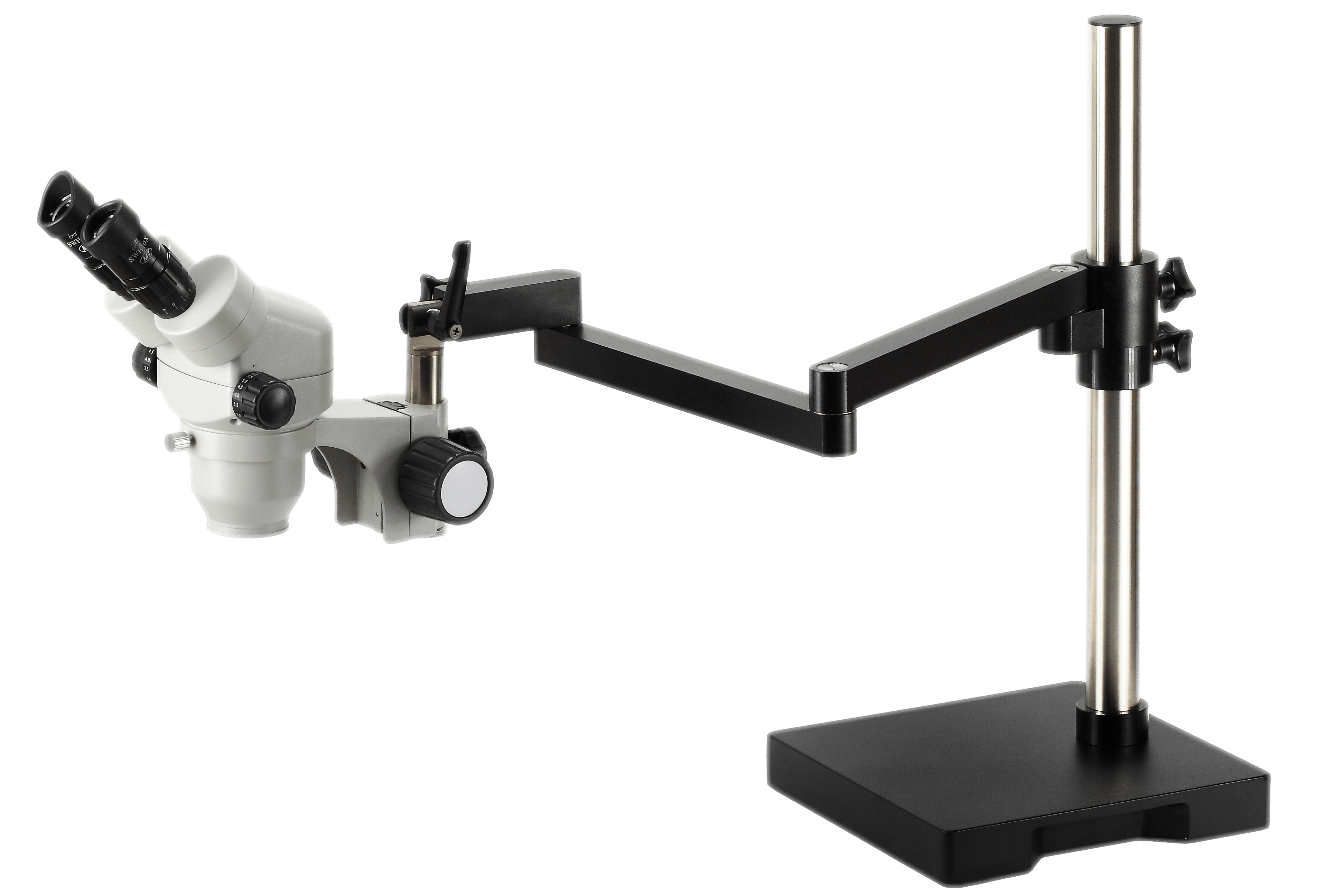

Examples of other configurations

Brochure

Eyepiece	Item	Main body	Specification of different auxiliary objective
Eyepiece	Item	Main body	0.37X	0.5X	0.7X	1.5X	2X
10X	Total Mag.	10X~65X	3.7X~24.1X	5X~32.5X	7X~46X	15X~98X	20X~130X
10X	FOV(mm)	Φ23~Φ3.5	Φ62.2~Φ9.6	Φ46~Φ7	Φ32.9~Φ5	Φ15.3~Φ2.3	Φ11.5~Φ1.8
15X	Total Mag.	15X~97.5X	5.55X~36.1X	7.5X~48.8X	10.5X~69X	22.5X~147X	30X~195X
15X	FOV(mm)	Φ17~Φ2.6	Φ45.9~Φ7.1	Φ34~Φ5.2	Φ24.3~Φ3.7	Φ11.3~Φ1.7	Φ8.5~Φ1.3
20X	Total Mag.	20X~130X	7.4X~48.1X	10X~65X	14X~92X	30X~196X	40X~260X
20X	FOV(mm)	Φ14~Φ2.2	Φ37.8~Φ5.8	Φ28~Φ4.2	Φ20~Φ3.1	Φ9.3~Φ1.4	Φ7~Φ1.1
30X	Total Mag.	30X~195X	11.1X~72.2X	15X~97.5X	21X~138X	45X~294X	60X~390X
30X	FOV(mm)	Φ9~Φ1.4	Φ24.3~Φ3.7	Φ18~Φ2.7	Φ12.9~Φ2	Φ6~Φ0.9	Φ4.5~Φ0.7
WD(mm)		110	275	195	145	50	35
NOTES: 1. Please use lengthened round post when using 0.37X objective, track stands cannot be used.2. When 0.5X or lower magnification objective applied, track stands cannot be used.

	Stands: SD1~SD18			Digital camera adapter: DT01
	Universal stands: U1, U2, U3, U4, U1c, U2c, U3c			Digital camera adapter: PT02
	Eyepieces: SWH10X, SWF15X, SWF20X,SWF30X			1X CCD adapter with micrometer: CDM1.0; Note: It should be used with CCD adapter together.
	Eyepieces with reticle: SWH10X-CM0.1XY, SWF15X-CM0.05XY, SWF20X-CM0.05XY			Auxiliary illuminators: MLR60, ML01
	Auxiliary objectives: W0.37, W0.5, W0.7, W1.5, W2.0			CMOS Cameras: available
	CCD adapters: C0.3-S、C0.5-S、C1.0-S			Mechanical stages: S7665,S10086; Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs especially to be increased the screw holes.
