| Weight | 1800 g |
|---|---|
| Dimensions | 370 × 330 × 385 mm |
| Optical Mag. | 8X~50X |
| Zoom Ratio | 6.25:1 |
| standard eyepieces | WFH10X/22(high eyepoint) |
| Eyetube Inclination degree | 45 degree |
| Working distance | 91mm |
| Interpupillary Distance | 52mm~76mm |
| Diopter Range | +-6 degree |
| Stand | SD1 |
| Illuminator | ML60 LED |
| CCD adaptor | C1.0-S (used for trinocular) |
| color | Grey, black |
| Optical system | Parallel-optics |

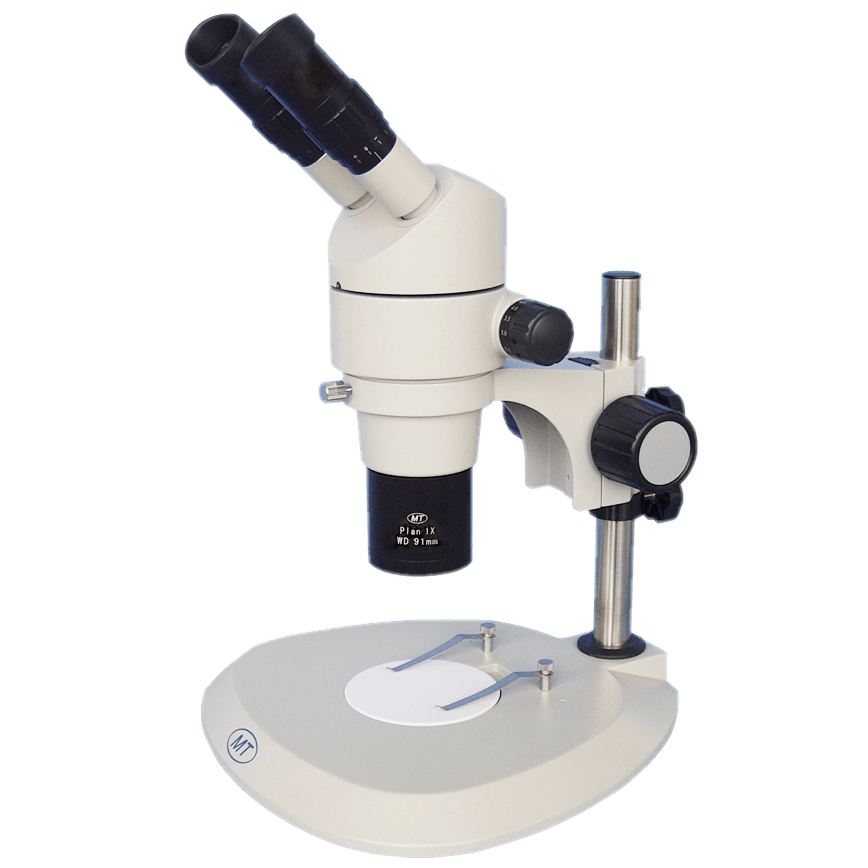

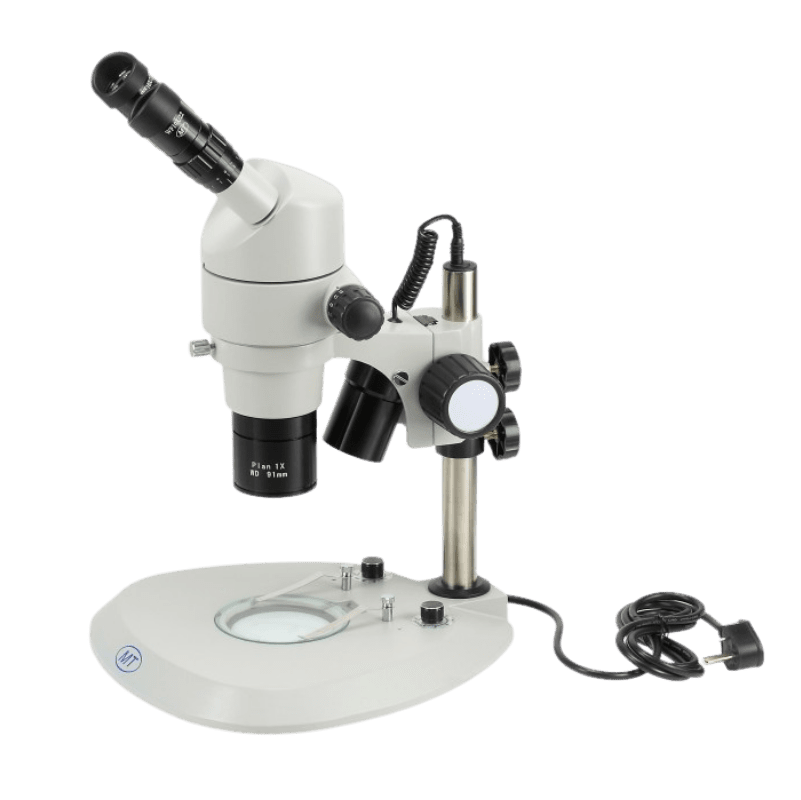

MZPS0850+SD1:

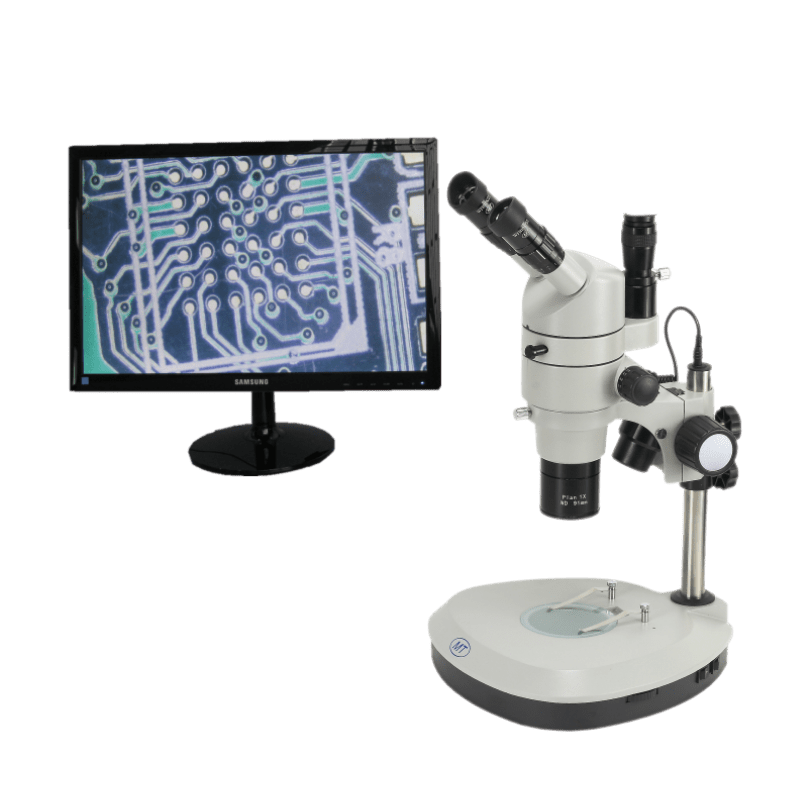

MZPS0850T+SD1:

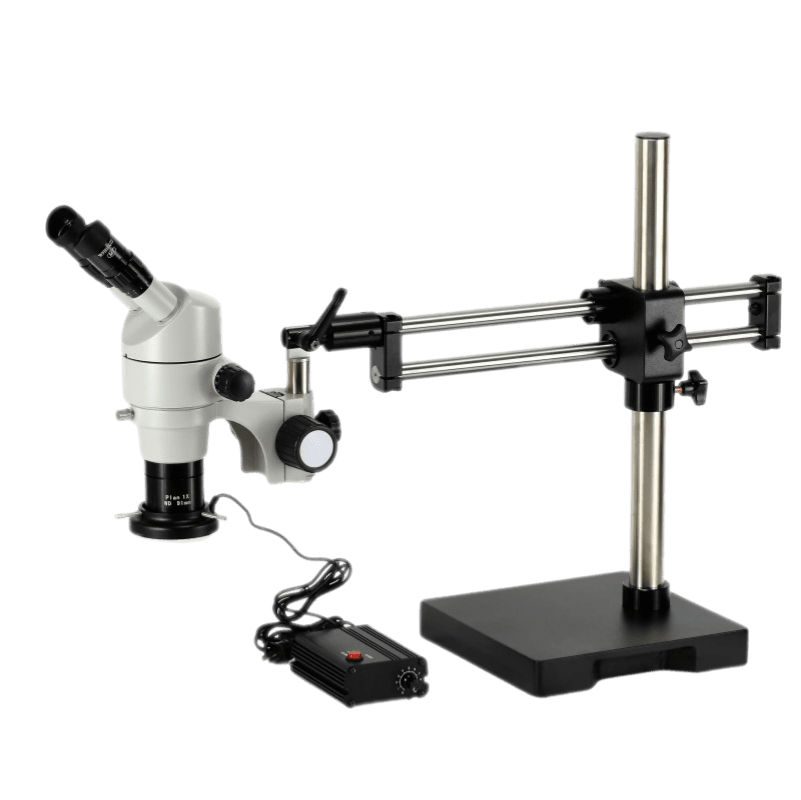

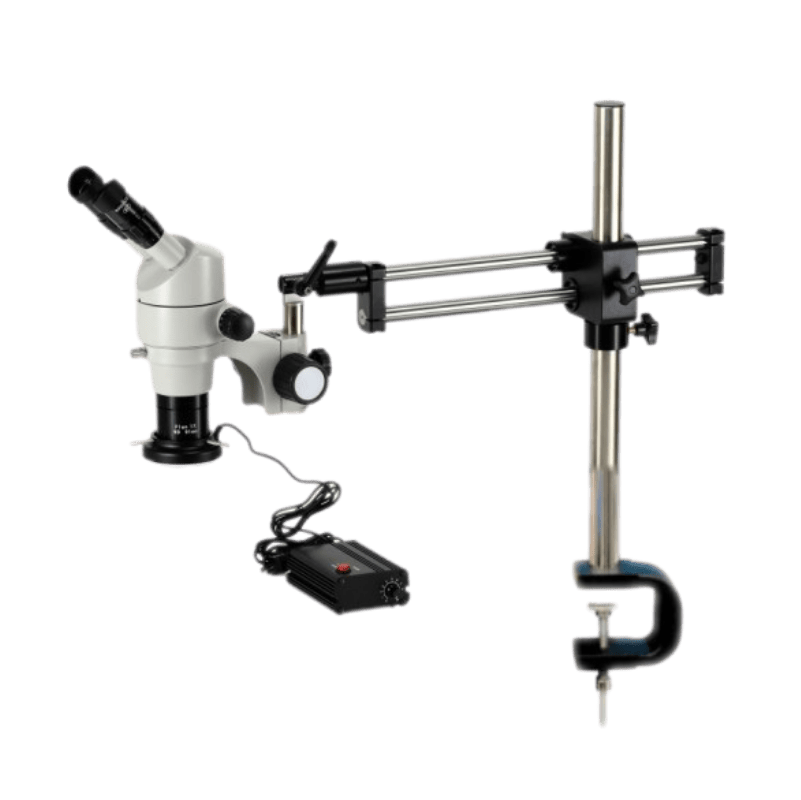

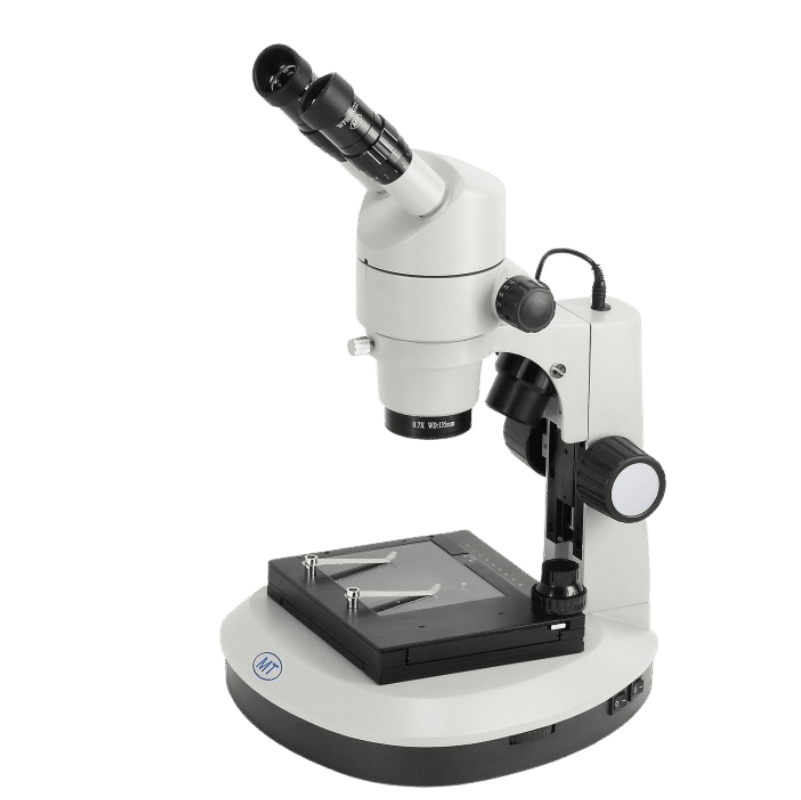

| Eyepiece | Item | Specification of different auxiliary objective | |||
| 0.5X | 0.7X | 1X | 1.5X（Auxiliary） | ||
| 10X | Total Mag. | 4X~25X | 5.6X~35X | 8X~50X | 12X~75X |
| FOV（mm） | Φ55~Φ8.8 | Φ39.3~Φ6.3 | Φ27.5~Φ4.4 | Φ18.33~Φ2.93 | |
| 15X | Total Mag. | 6X~37.5X | 8.4X~52.5X | 12X~75X | 18X~112.5X |
| FOV（mm） | Φ42.5~Φ6.8 | Φ30.36~Φ4.86 | Φ21.25~Φ3.4 | Φ14.17~Φ2.27 | |
| 20X | Total Mag. | 8X~50X | 11.2X~70X | 16X~100X | 24X~150X |
| FOV（mm） | Φ35~Φ5.6 | Φ25~Φ4 | Φ17.5~Φ2.8 | Φ11.67~Φ1.87 | |
| 30X | Total Mag. | 12X~75X | 16.8X~105X | 24X~150X | 36X~225X |
| FOV（mm） | Φ22.5~Φ3.6 | Φ16.1~Φ2.57 | Φ11.25~Φ1.8 | Φ7.5~Φ1.2 | |
| WD（mm） | 186 | 135 | 91 | 40 | |
| Notes: | |||||
| 1. Please use 1X plane objective together when using 1.5X auxiliary objective. | |||||
| 2. When 0.5X or lower magnification auxiliary objective applied, track stands can not be used. | |||||
 | Stands: SD1~SD18 |  | Trinocular beam splitter: | |
 | Universal stands: U1, U2, U3, U4, U1c, U2c, U3c |  | Digital camera adapter: PT02 | |
 | Eyepieces: SWH10X, SWF15X, SWF20X,SWF30X |  | 1X CCD adapter with micrometer: CDM1.0; Note: It should be used with CCD adapter together. | |
 | Eyepieces with reticle: SWH10X-CM0.1XY, SWF15X-CM0.05XY, SWF20X-CM0.05XY |  | Auxiliary illuminators: MLR60, ML01 | |
 | Auxiliary objectives: PS-W0.5, PS-W0.7, PS-W1.5(used with PS-WP1.0) |  | CMOS Cameras: available | |
 | CCD adapters: C0.3-S、C0.5-S、C1.0-S |  | Mechanical stages: S7665,S10086; Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs especially to be increased the screw holes. |
